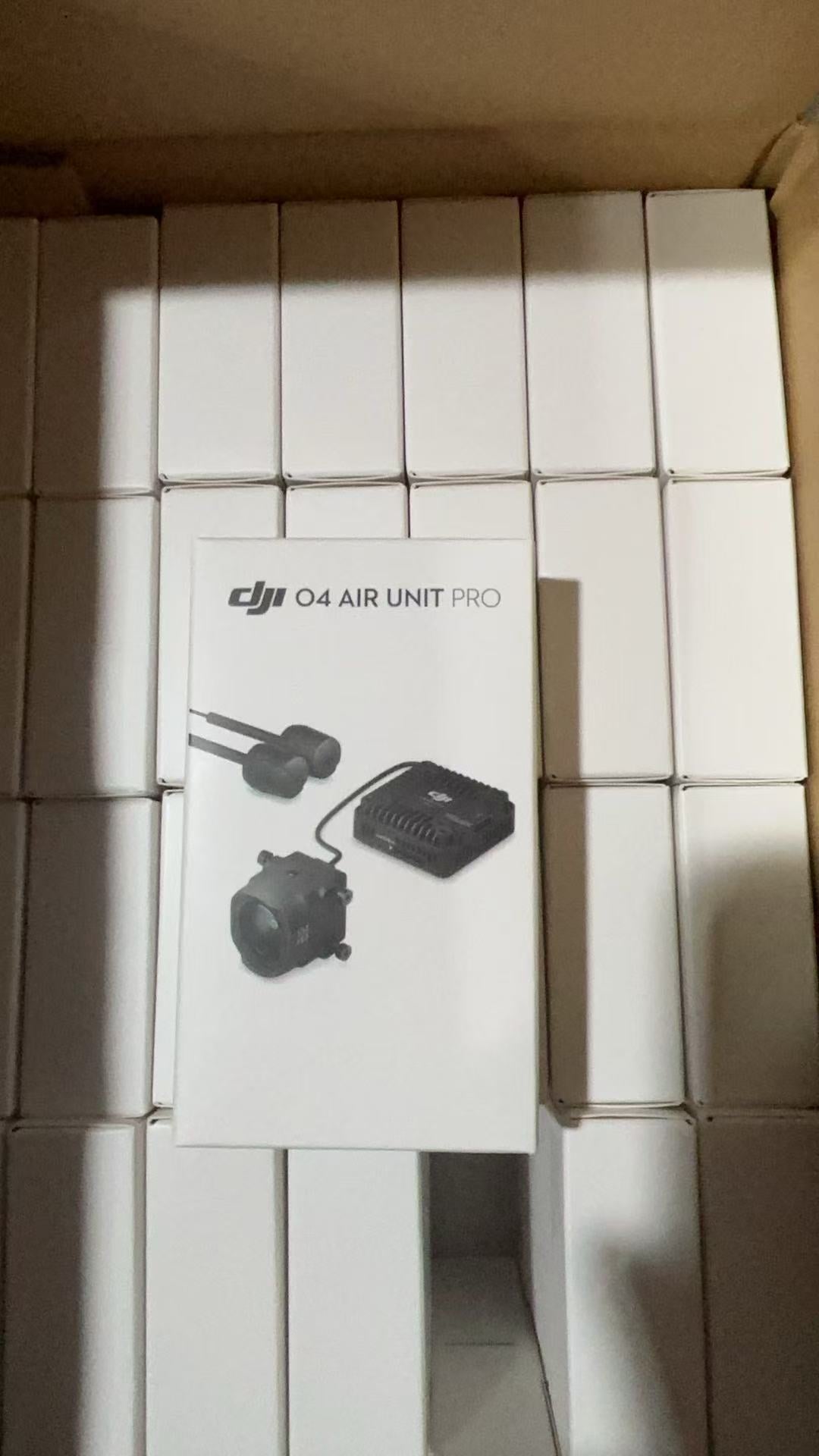

O4 Air Unit Pro
- Regular price
-
$249.00 - Regular price
-
- Sale price
-
$249.00
Ship within 12 hours
Couldn't load pickup availability
About this product
The DJI O4 Air Unit Pro redefines video transmission with improved resolution, lower latency, and extended range. At just 32 grams, it integrates a 1 1/3-inch image sensor that records 4K/120fps video, delivering an ideal combination of performance and portability.
Features
Works with DJI Goggles 2, DJI Goggles Integra, DJI Goggles 3, or DJI Goggles N3
Compatible with DJI FPV Remote Controller 2 or 3
Flagship FHD FPV Digital Video Transmission
155° Ultra-Wide Field of View (FOV)
15 ms Low Latency, 15 km Range
4K/120fps Video Recording
1/1.3-inch CMOS Sensor
1080p/100fps Live View
32g Body
FLAGSHIP DESIGN
The DJI O4 Air Unit Pro can fit drone frames of 3 inches and above, supporting flexible assembly to suit various creative flight scenarios. Experience the thrill of flying while capturing high-quality footage with ease.
VISUALLY STRIKING
The DJI O4 Air Unit Pro is capable of recording 4K/120fps video. The video transmission system utilizes H.265 video encoding, supporting high-frame-rate transmission at 1080p/100fps, ensuring clear and smooth real-time imagery. No matter how fast you fly, the camera view keeps up.
RACING MODE
The DJI O4 introduces a new Racing mode, with video transmission latency as low as 15 milliseconds. It supports up to eight aircraft racing simultaneously, taking you on an exhilarating, high-speed journey through the skies.
CANVAS MODE
The DJI O4 Air Unit supports Canvas Mode and Betaflight OSD settings. You can customize the real-time data and layout displayed on your goggles screen, making flight data clear at a glance and enhancing your control precision.
Specifications
DJI O4 AIR UNIT PRO
Weight:
Air Unit (camera module excluded): Approx. 15.6 g
Air Unit (camera module included): Approx. 32 g
Antenna: Approx. 2.1 g/pcs
Dimensions:
Transmission Module: 33.5 × 33.5 × 13 mm (L × W × H)
Camera Module: 25.55 × 20 × 23.30 mm (L × W × H)
Camera Cable Length: 135 mm
Coaxial Cable: 140 mm
3-in-1 Cable: 100 mm
Antenna: 110 mm
VTX Mounting Pattern: 20 × 20 / 25.5 × 25.5 mm
VIDEO TRANSMISSION
Operating Frequency:
5.170-5.250 GHz
5.725-5.850 GHz
Note: Operating frequency varies by region. Follow local regulations.
Transmitter Power (EIRP):
5.1 GHz: <23 dBm (CE)
5.8 GHz
:<33 dBm (FCC)
<14 dBm (CE)
<30 dBm (SRRC)
Lowest Latency:
DJI Goggles 3 in Racing Mode: 15 ms (1080p/100fps)
DJI Goggles N3 in Racing Mode: 19 ms (1080p/100fps)
DJI Goggles 2 or Goggles Integra: <30 ms (1080p/100fps)
Note: Latency data was tested in an outdoor environment without interference.
Max Video Transmission Range:
DJI Goggles 3/DJI Goggles N3:
15 km (FCC)
8 km (CE/SRRC)
Note: Transmission range varies by flight endurance and environment.
Live View Quality: 1080P@30/48/50/60/100fps
Communication Bandwidth: Max 60 MHz
Antenna: 2 antennas, 2T2R
Channels:
Supports auto and manual modes
DJI Goggles 3/N3:60 MHz: 1 channel
40 MHz: 1 channel
20 MHz: 3 channels
10 MHz: 3 channels
DJI Goggles 2/Integra:40 MHz: 1 channel
20 MHz: 3 channels
10 MHz: 3 channels
Channel Info:
FCC/SRRC/CE:60 MHz/40 MHz: Channel 1: 5794.5 MHz
20 MHz/10 MHz:Channel 1: 5768.5 MHz
Channel 2: 5789.5 MHz
Channel 3: 5814.5 MHz
CAMERA
Image Sensor: 1/1.3-inch CMOS Sensor
Lens:
FOV: 155°
Equivalent Focal Length: 12 mm
Aperture: f/2.8
Focus: 0.6 m to ∞
ISO Range:
Auto: 100-25600
Manual: 100-25600
Video Resolution:
4K (4:3): 3840 × 2880@30/48/50/60fps
4K (16:9): 3840 × 2160@30/48/50/60/100/120fps
2.7K (4:3): 2888 × 2016@30/48/50/60fps
2.7K (16:9): 2688 × 1512@30/48/50/60/100/120fps
1080P (4:3): 1440 × 1080@30/48/50/60/100/120fps
1080P (16:9): 1920 × 1080@30/48/50/60/100/120fps
Video Format: MP4
Max Video Bitrate: 130 Mbps
Color Mode:
Normal Mode
D-Log M
Camera FOV Modes:
Standard
Wide-Angle
Ultra Wide-Angle
Electronic Image Stabilization (EIS):
RockSteady 3.0+
Stabilization off (supports Gyroflow)
Note: RockSteady only supports standard angles.
HARDWARE
Input Voltage: 7.4-26.4 V
Operating Temperature: -10°C to 40°C
STORAGE
Built-in Storage: 4GB
Supported SD Cards: microSD (up to 512 GB)
Recommended microSD Cards
Lexar Professional 1066x (64GB, 128GB, 256GB, 512GB)
Kingston Canvas Go! Plus (64GB, 128GB, 256GB, 512GB)
COMPATIBILITY
Supported Flight Controller System: Betaflight 4.3.0 and higher
Supported DJI Goggles and Remote Controllers:DJI Goggles 3 + DJI FPV Remote Controller 3
DJI Goggles N3 + DJI FPV Remote Controller 3
DJI Goggles 2 / Goggles Integra + DJI FPV Remote Controller 2
Note: The flight control firmware must support the SBUS protocol for using the DJI FPV Remote Controller.
DJI O4 PRO ANTENNA
Weight: Approx. 2.1 g
Length: 110 mm
