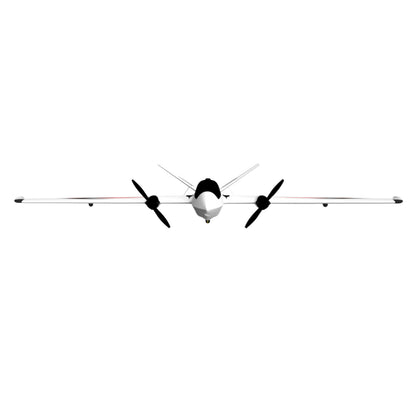

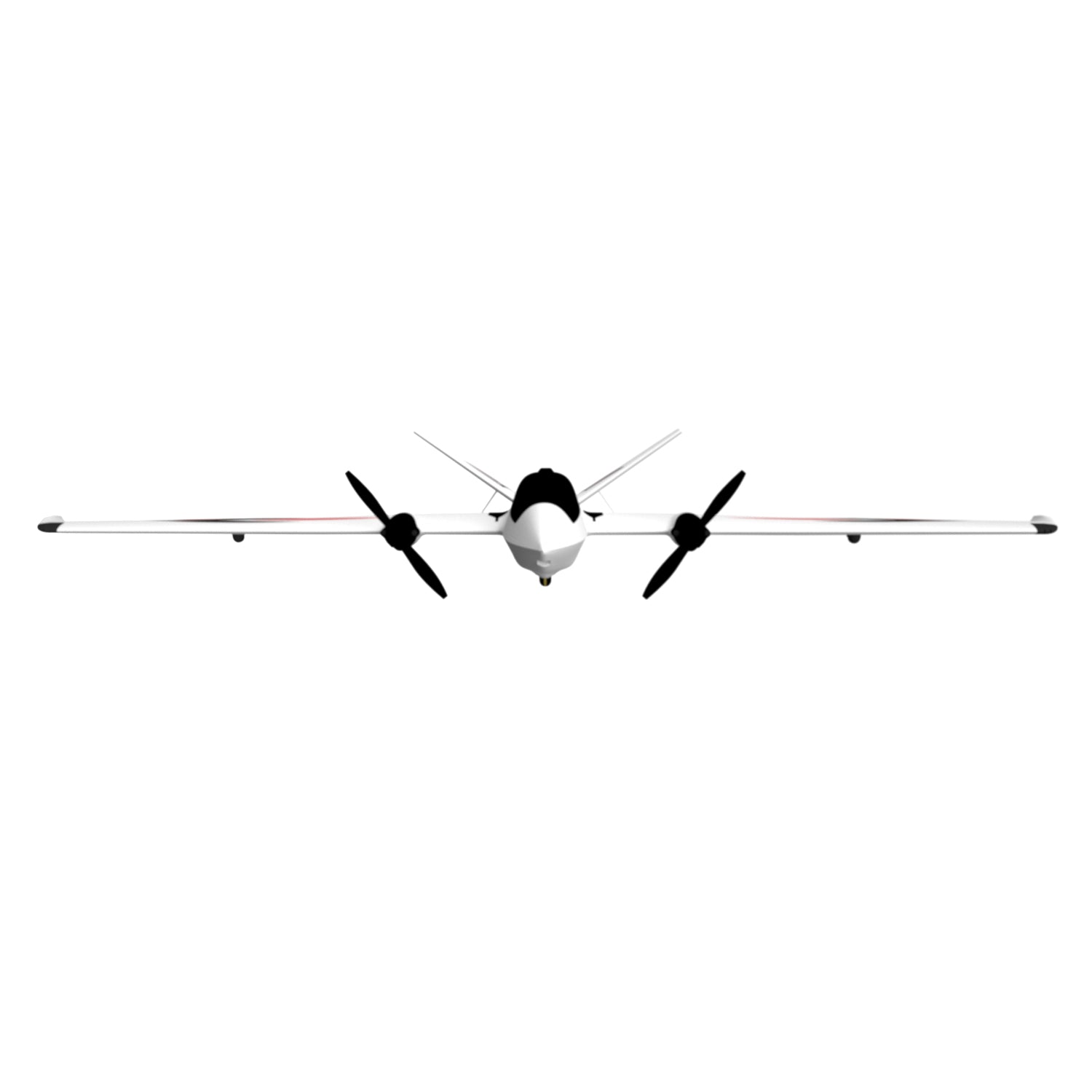

Atomrc Swordfish Fixed Wing with 1200mm Wingspan

ATOMRC Swordfish FPV RC Plane Fixed Wing Flying Aircraft Build for FPV, Intelligence flight. -Flight controller have two firmware INAV or Arduplane, both firmware already pre-turned for the plane. RTH and RTH FPV version are plug and play, use just plug theire receiver and battery, plane is ready to go just like racing drones, no need glue or installed the electronics.

Explore the skies with the Atomrc Swordfish Fixed Wing. This advanced model aircraft boasts a 1200mm wingspan and is equipped with the latest technology designed to make your flight experience smoother and more enjoyable. Enjoy aerial stunts and maneuvers with this expert-level aircraft. Arduplane version is also available, we can upload arduplane parameter setting on our web, you just need flash the arduplane firmware, load the settings.

Specifications:
Wingspan:1200mm
Length:810mm
Material: EPP
WingArea:15.35 dm²
Package size:815*220*185mm
Recommend motor: 2004~2306
Recommend prop: 7045
Recommend battery: 4s 5000mAh/21700 1P4s
Servo: 4Pcs 9g servo
Item weight: 1.4kg
Package size: 84*25.2*22.5 cm

Easy for beginners, pre turned and pre-installed electronics.

Auto launch mode, return to home, circle mode
Need install the ATOMRC F405 NAVI flight controller, the RTH and RTH+FPV have intelligence flight mode.

Quick Release connector
The quick release connector using soft connection, solved the disconnection from vibration or crash. Easy to install the wing and detach the wing.

Hatch Lock,
The screw and nuts are more durable and reliable than magnet, the hatch will never fall off in the air.

Carbon fiber reinforcement and plastic injection mount for tail, more rigid for high speed and landing

Precise Plastic injection parts
The wing connector, motor mount, VTX mount, V tail base and flight light cover are using precise Plastic injection parts, more durable and light weight.

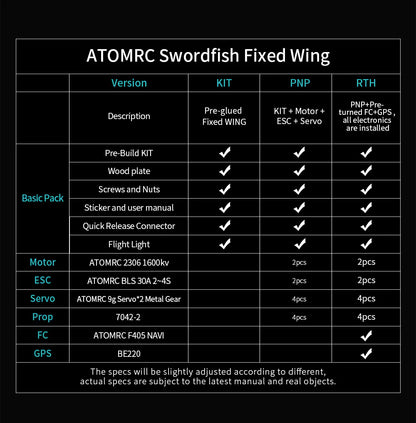

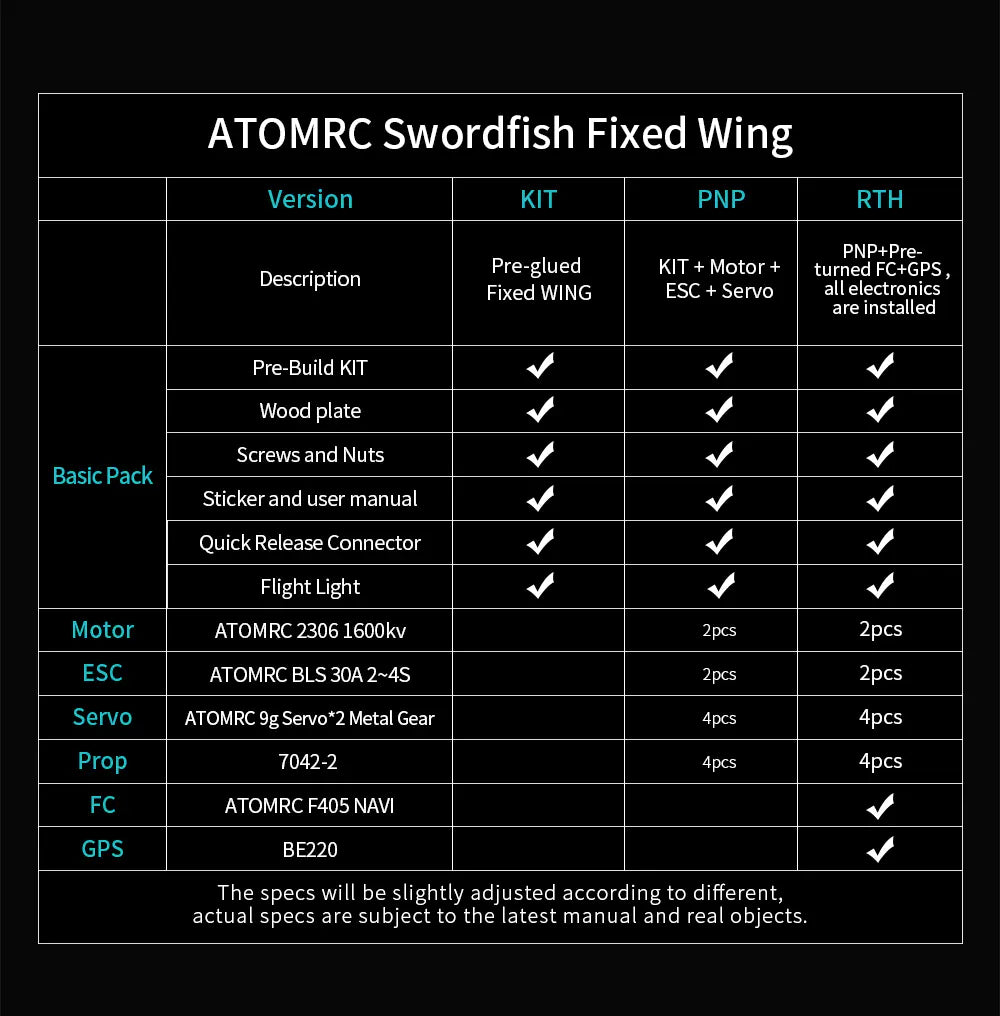

Atomrc Swordfish versions:
KIT Version: pre-glued fixed wing
PNP Version: KIT+Motor+ESC+Servo
FPV Version: PNP+VTX+Camera
RTH Version: PNP+Pre-turned FC+GPS, all electronics are installed
RTH+FPV Version: RTH+VTX+Camera, all electronics are installed

KIT Version Included:
1x Pre-glued fixed wing
1x Wood Plate
1x Screws and Nuts
1x Sticker
1x Manual
1x Flight Light

PNP Version Included:
1x Pre-glued fixed wing
1x Wood Plate
1x Screws and Nuts
1x Sticker
1x Manual
1x Flight Light
2x ATOMRC 2306 1700KV Motor
2x ATOMRC BLS 30A 2-4S ESC
4x ATOMRC 9g Servo
4x 7042-2 Propeller

RTH Version Included:
1x Pre-glued fixed wing
1x Wood Plate
1x Screws and Nuts
1x Sticker
1x Manual
1x Flight Light
2x ATOMRC 2306 1700KV Motor
2x ATOMRC BLS 30A 2-4S ESC
4x ATOMRC 9g Servo
4x 7042-2 Propeller
1x ATOMRC F405 NAVI Flight Controller
1x BN220 GPS Module

RTH FPV Version Included:
1x Pre-glued fixed wing
1x Wood Plate
1x Screws and Nuts
1x Sticker
1x Manual
1x Flight Light
2x ATOMRC 2306 1700KV Motor
2x ATOMRC BLS 30A 2-4S ESC
4x ATOMRC 9g Servo
4x 7042-2 Propeller
1x Foxeer Toothless NANO Camera
1x ATOMRC Exceed TX500 VTX
1x Antenna
1x ATOMRC F405 NAVI Flight Controller
1x BN220 GPS Module
