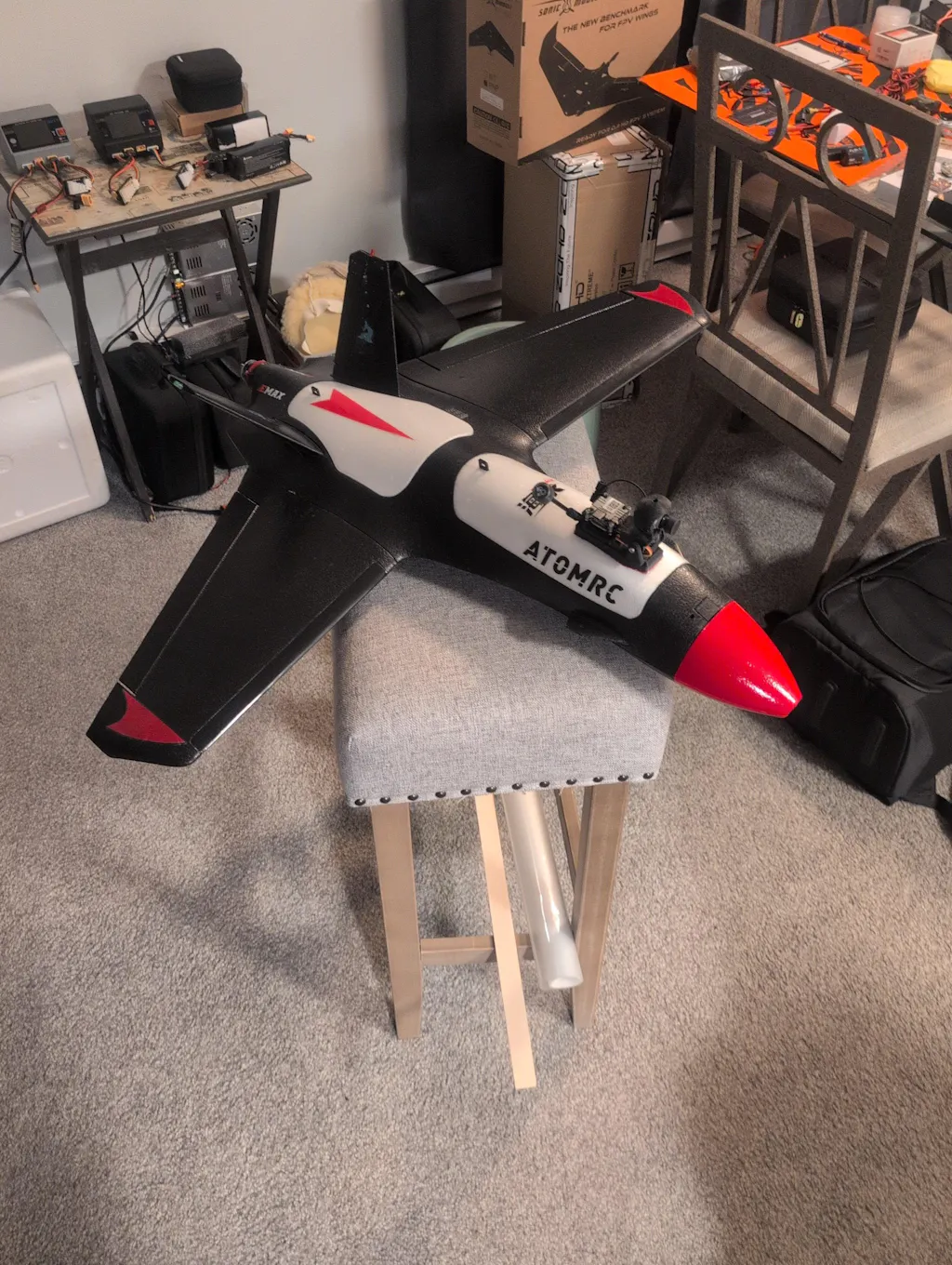

ATOMRC Dolphin Fly Wing

The Dolphin rc plane is sweep forward fly wing, with elegant design, the dolphin can fly stable both on high speed and low speed, the large fuselage can give use lots of space to install the electronics, the detachable wing made the wing easy for transport, V tail made the wing more stable for crusing.

Description:
Brand Name: ATOMRC
Item Name: Dolphin
Wingspan: 845mm(33.2")
Length: 710mm(28")
Motor recommend: 2306
ESC: 30A with 5V/3A BEC
Servo: 2pcs 9g servo
Propeller recommend: 6~7 inch
Battery recommend : 21700 4S1P (300~50g)

Features:
- EPP molded wing, embedded with carbon fiber tube, durable and light weight.
- Carbon fiber tube enhanced elevens, more rigid elevens during high speed fight.
- Detachable wing, portable to transport.
- Detachable head, two head for choice, use can choose fly with gopro or without gopro.
-Rubber band and magnet to lock the gopro, easy to install the gopro.
- V tail design make the wing more stable than normal fly wing.
- Pre installed wing and fuselage protector, more durable during landing.
- Compatible with GOPRO hero 5~7.
- Movable battery slot for better “CG” adjustment.
- Pre installed camera cable and antenna for FPV gear.
- Air inlet and outlet for FPV gear cooling.

Recommend Parts (not included in kit version):
Motor: 2306
ESC: 30A with 5V/3A BEC
Servo: 2pcs 9g servo
Propeller: 5-6inch
Battery: 4S 1300-2200mah (Not Included)
Radio: more than 6CH (Not Included)

Ship from the USA warehouse.

Package Includes:
Dolphin Kit V1.1 Version:
1 x Prebuild Dolphin Kit
1 x Ball Push/Push Rod
1 X Sticker
1 x Battery Strap
1 x Camera Cable
1 x SMA to UFL VTX cable
1 x Screws
Requires: Radio, Receiver, Battery, Charger, ESC, Motor, Servos set up.

Dolphin PNP V1.1 Version:
1 x Dolphin KIT
1 x 2306 Motor
1 x ATOMRC Exceed BLS 4s30A ESC
1 x ATOMRC Exceed 9g Servo*2
Requires: Radio, Receiver, Battery, Charger set up.

Dolphin RTH V1.1 Version:
1 x Dolphin PNP
1 x ATOMRC F405 NAVI FC
Requires: Radio, Receiver, Battery, Charger set up.

Dolphin RTH FPV V1.1 Version:
1 x Dolphin RTH
1 x ATOMRC F405 NAVI FC
1 x ATOMRC TX15 VTX
1 x ATOMRC Toothless CAM
Requires: Radio, Receiver, Battery, Charger set up.
