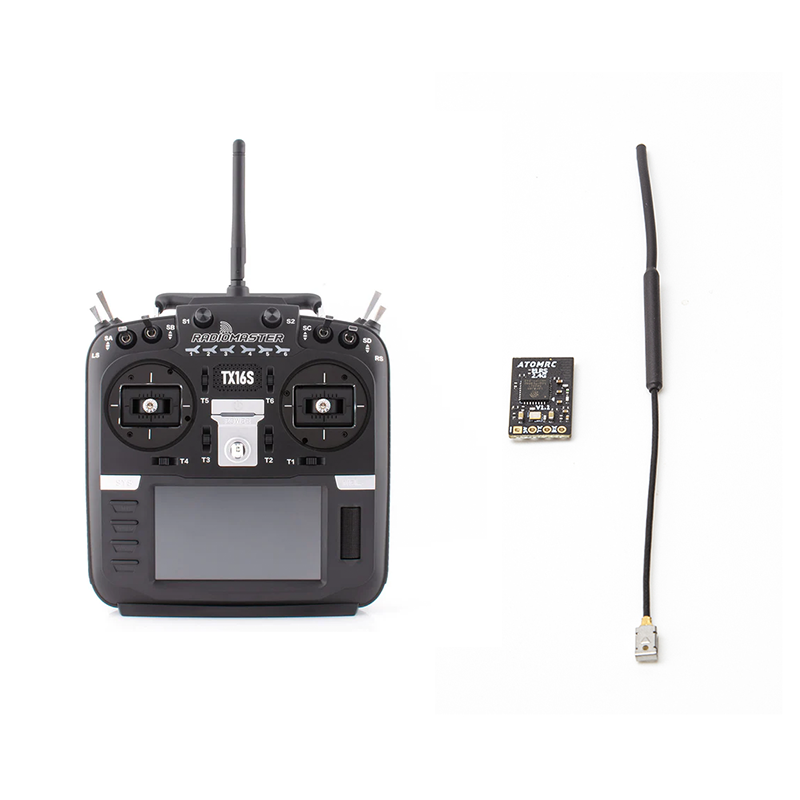

RadiolMaster TX16S 2.4G ELRS Radio Controller with 2.4G ELRS Receiver

Regular price
Regular price
Sale price
Shipping calculated at checkout.

IN STOCK. Worldwide shipping.

    Radio Master TX16S 2.4G ELRS, Support EdgeTX and OpenTX, Available in 4in1 and ELRS versions.

    Improved internal circuitry and optimized power supply.
    New charge circuitry with integrated reverse-polarity protection.
    Optimized charge IC now allows up to 2.2A internal USB-C charge current.
    Rear-mounted audio jack provided headphone output.
    V4.0 Gimbal improved centering and temperature stability (Same circuitry as AG01).
    Optional high/low rear grips are included for improved ergonomics.
    Improved S1/S2 knobs with clear centre-detents.
    Improved LS/RS Sliders with smoother feel and better centre-detents.
    Redesigned battery cover for improved battery access.
    Retooled body shell with improved fit and finish.
    Trainer socket changed to standard TRS 3.5mm socket.
    Rear DIY Socket added for personalized mods.
    Improved internal plastics for better longevity.
    Available ELRS and 4in1 versions.

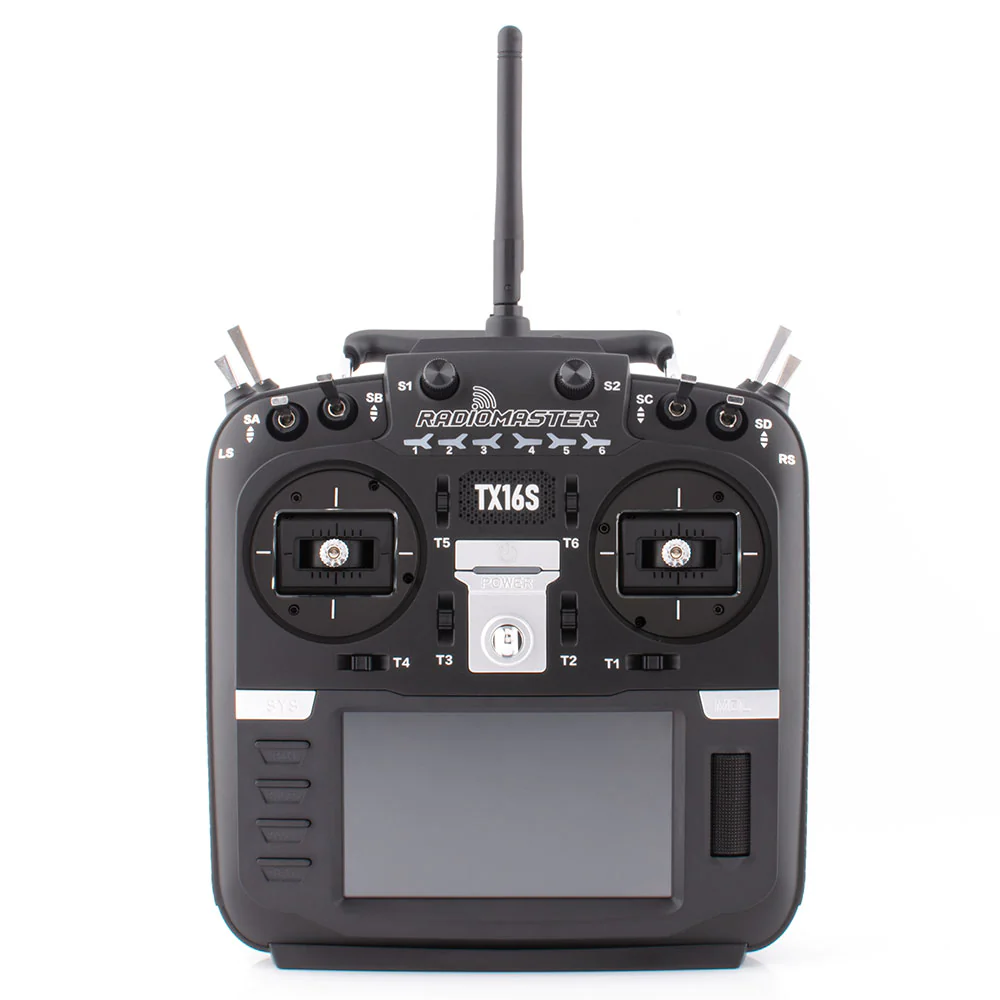

    Item: TX16S Mark II
    Size: 287x129x184mm
    Weight: 750g (without battery)
    Transmission frequency: 2.400GHz-2.480GHz
    Transmitter module: Option 1: Internal 4-in-1 multi-protocol module (CC2500 CYRF6936 A7105 NRF2401); Option 2: Internal ELRS (SX1280)
    SD card: 256MB by default, 8GB maximum
    Antenna gain: 2db (transmit power adjustable)
    Working current: 400mA
    Working voltage: 6.6-8.4v DC
    Radio firmware: EdgeTX
    Module Firmware: Multiprotocol- Module (4IN1) -OR- ExpressLRS (ELRS)
    Channels: Up to 16 channels (depending on the receiver)
    Display: 4.3-inch TFT full-colour touch display with a resolution of 480 * 272
    Gimbal: Option 1: V4.0 Hall sensor with Aluminium fascia; Option 2: AG01 CNC Hall sensor
    Module Bay: JR compatible module bay
    Upgrade method: Supports USB-C online / SD card offline upgrade

    Package Includes:
    1 * TX16S Mark II Radio Controller
    1 * 18650 Tray
    1 * USB-C Cable
    1 * Screen Protector
    1 pair of flat grips
    1 pair of raised grips (installed on radio by default)
    1 * TX16S Key Chain

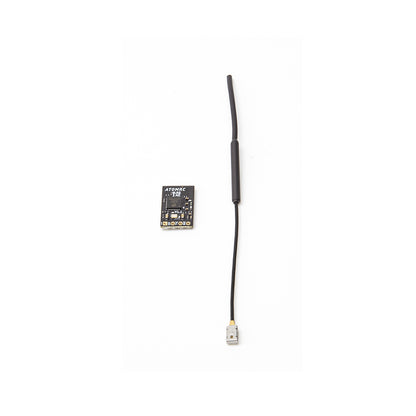

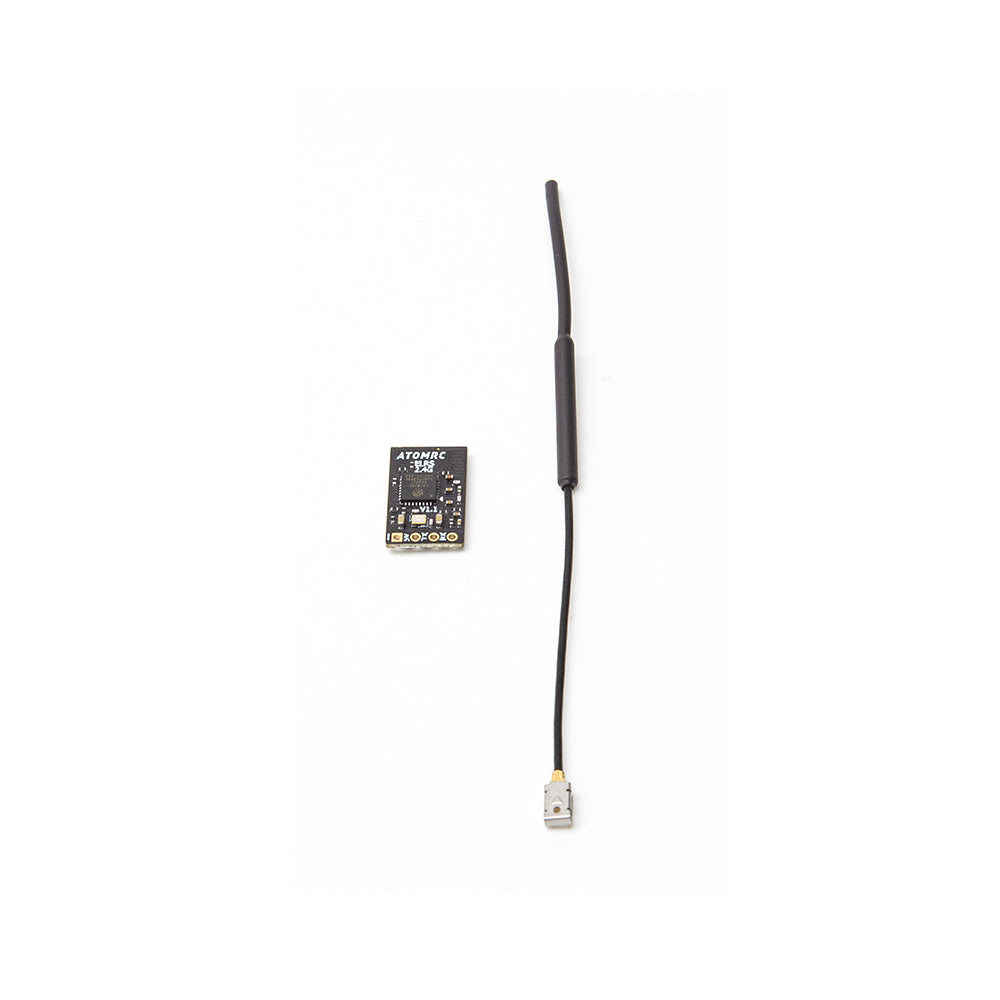

    1*ATOMRC 2.4G ELRS Receiver
