SKYZONEFPV

SKY04X

Regular price: $499.00
Regular price: ~~$519.00~~
Sale price: $499.00

Shipping calculated at checkout.

Color: Black Grey White Red

Model: SKY04X V2 SKY04X Pro

Product variants

IN STOCK. Ship within 12 hours.

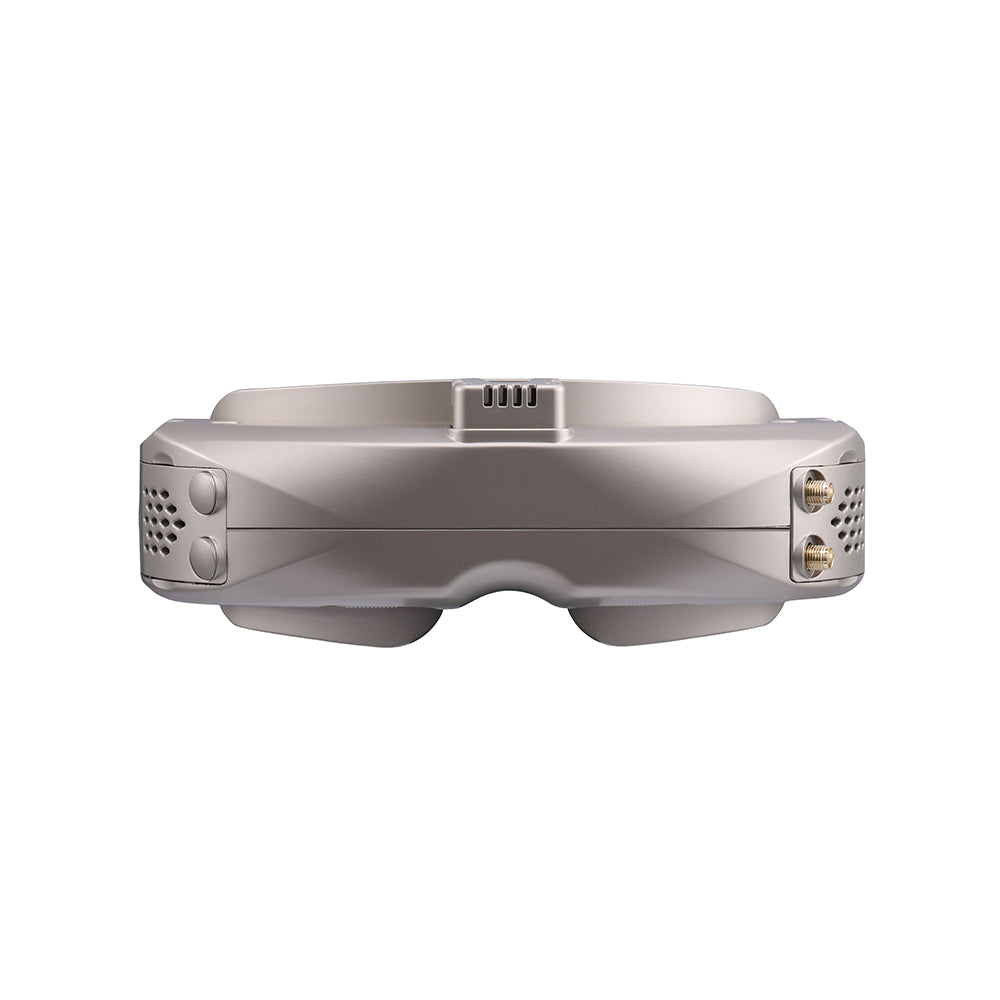

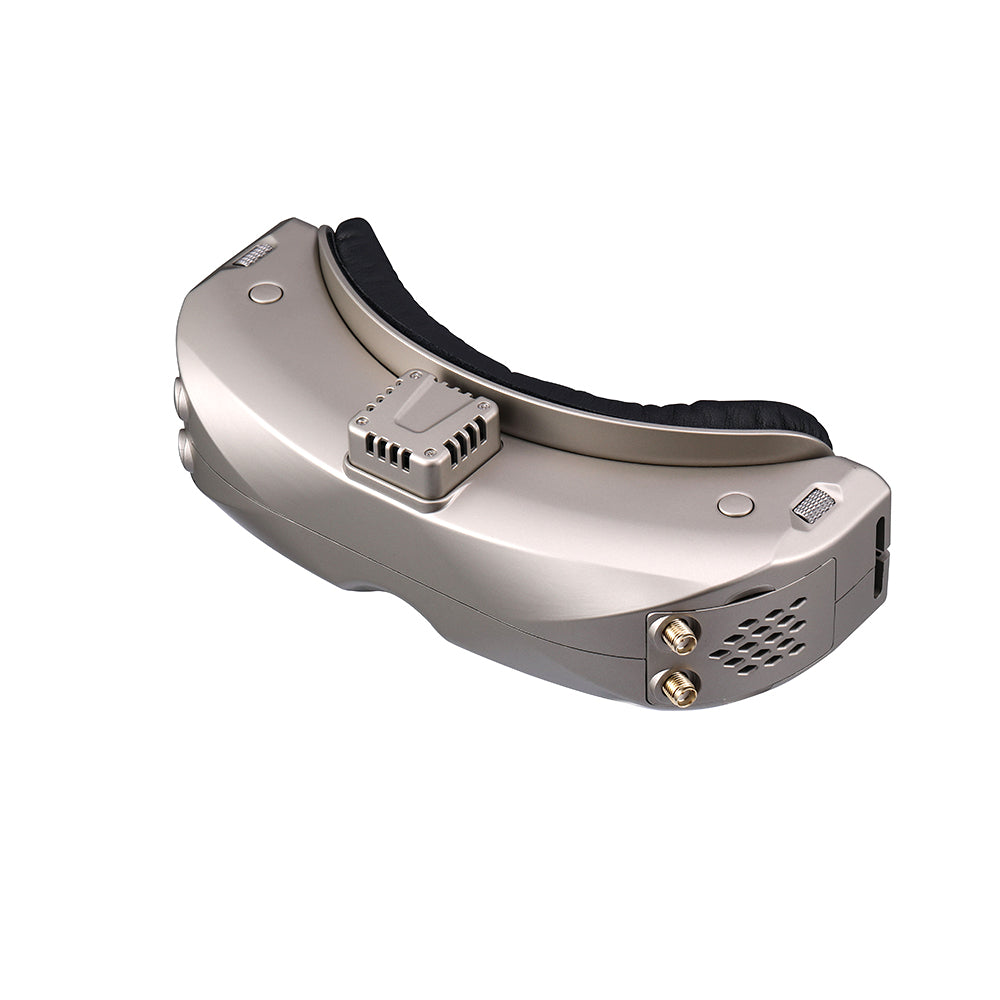

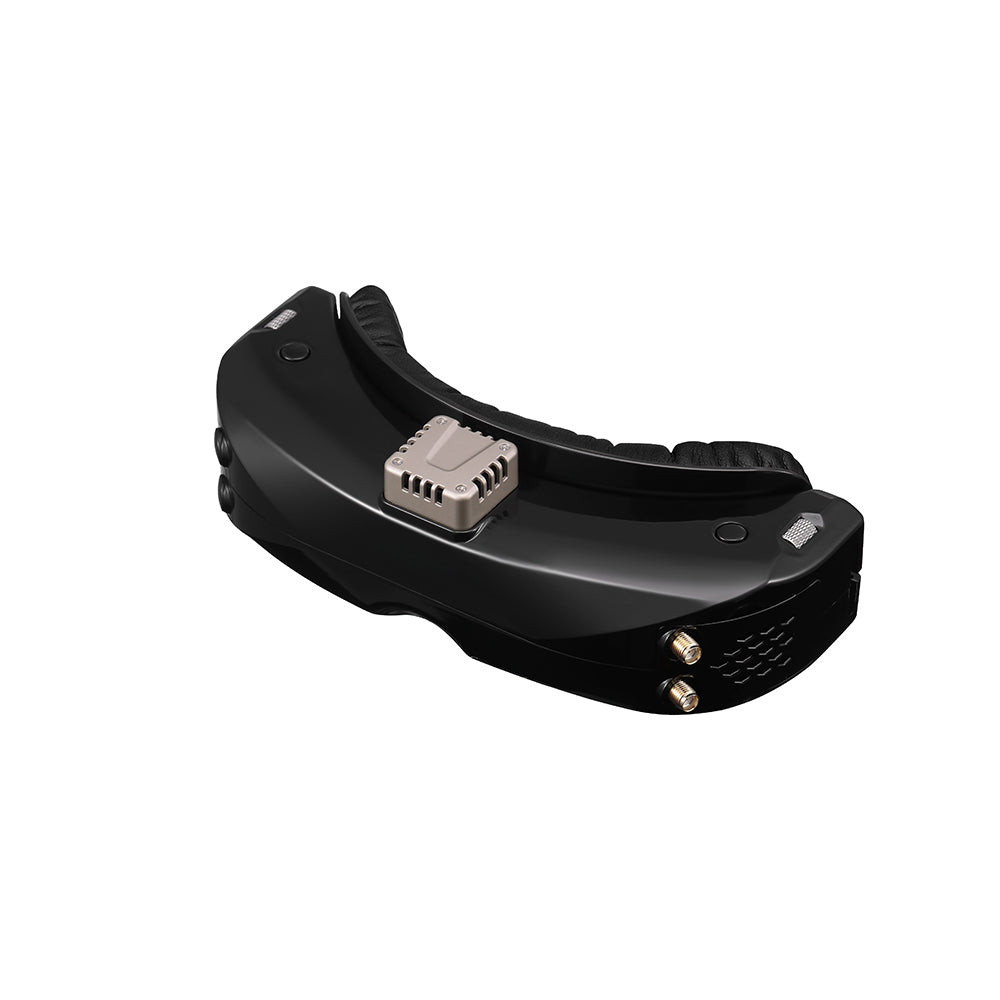

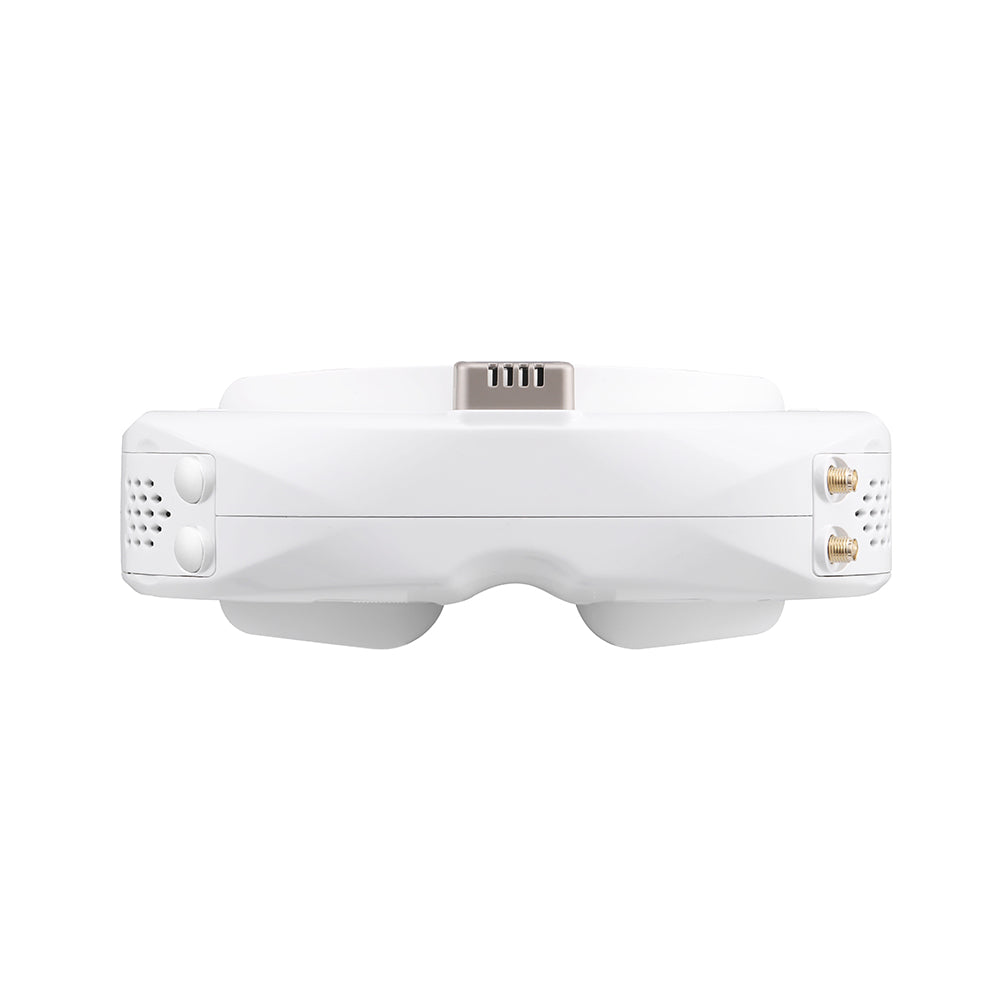

The SKYZONE FPV goggles SKY04X is the first SKYZONE Goggle for RC airplane racing drones with focus adjustment, the 04x 1280*960 high-resolution screen has vivid color and high contrast ratio, and the pilot can see more details in the racing.

SKY04X V2 FPV Goggles offer a superior experience with 60 frames-per-second, 1280x960 OLED resolution, and 48-channel 5.8GHz transmission. With its built-in Steadyview Receiver and comfortable design, you can enjoy clear, stable video and improved image latency, which supports HDzero or Fatshark. With a V3.3 Steadyview receiver, the receiver merges two signal into one, avoid image tearing and rolling, and make the image more stable and clear in challenging condition. The new sky 04x designed optics have a focus adjustment feature and 46 degrees Field of view, giving pilots a more immersive FPV experience. The new SKYZONE Google 04x OS with 10 languages to set select, the pilot has no trouble with the menu system, and with the shuttle wheel and new user interface, the pilot can set all the settings just by rolling the wheel without taking off the goggles.

Features:

SteadyView receiver merges two signals into one, making the image more stable and clear in challenging conditions.
Module bay, goggles have more capability to upgrade.

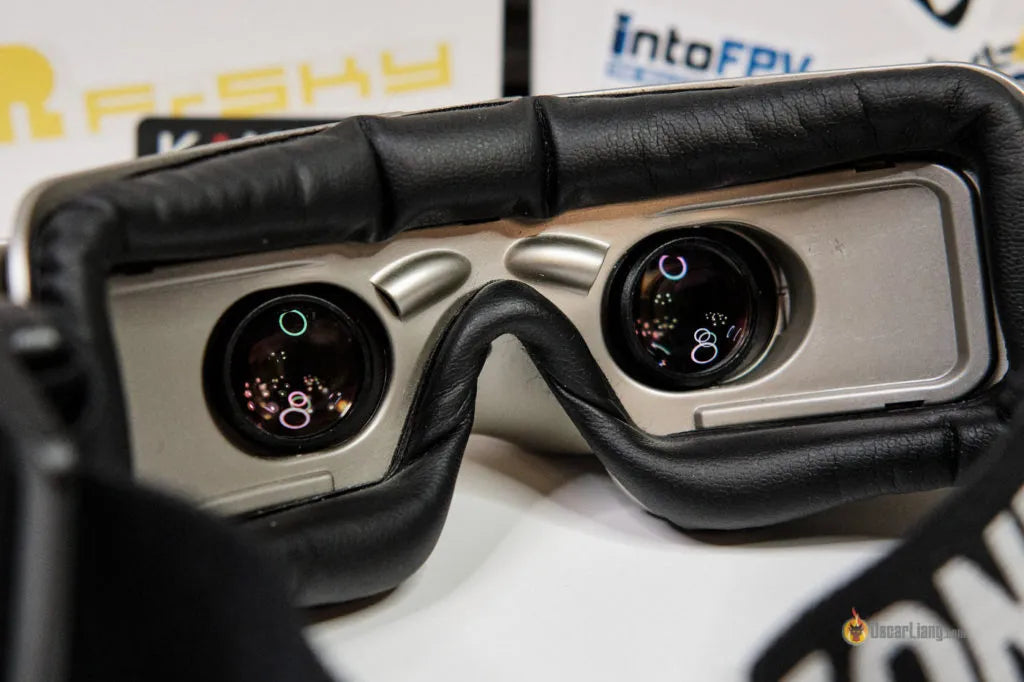

Focus Adjustment, The new Optics have a large Field of View (46 degrees). and the Optics have a Focus adjustment feature (-6~+2), no need diopter anymore.
OELD Screen, The 1280*960 screen has high resolution and vivid color, high contrast ratio, so pilots can see more details.
Advanced Screen Settings, The aspect ratio can is switchable, and 4 Preset screen settings and 3 customized settings for indoor, and outdoor flight, or different weather.
Shuttle Wheel Control, No more confusing multi-function button or 5-way Joy stick, with smooth and natural shuttle control, easy to navigate.
New User Interface with 10 languages, New UI with shuttle wheel, easy to navigate, 10 languages to choose from for local users.
60FPS DVR, support HDzero or Fatshark
Built-in DVR

SKY04X Specifications:

Screen: OLED
Resolution: 1280X960
FOV (Diagonal): 46°
Aspect Ratio: 4:3/16:9
Focus: -6~+2 adjustable

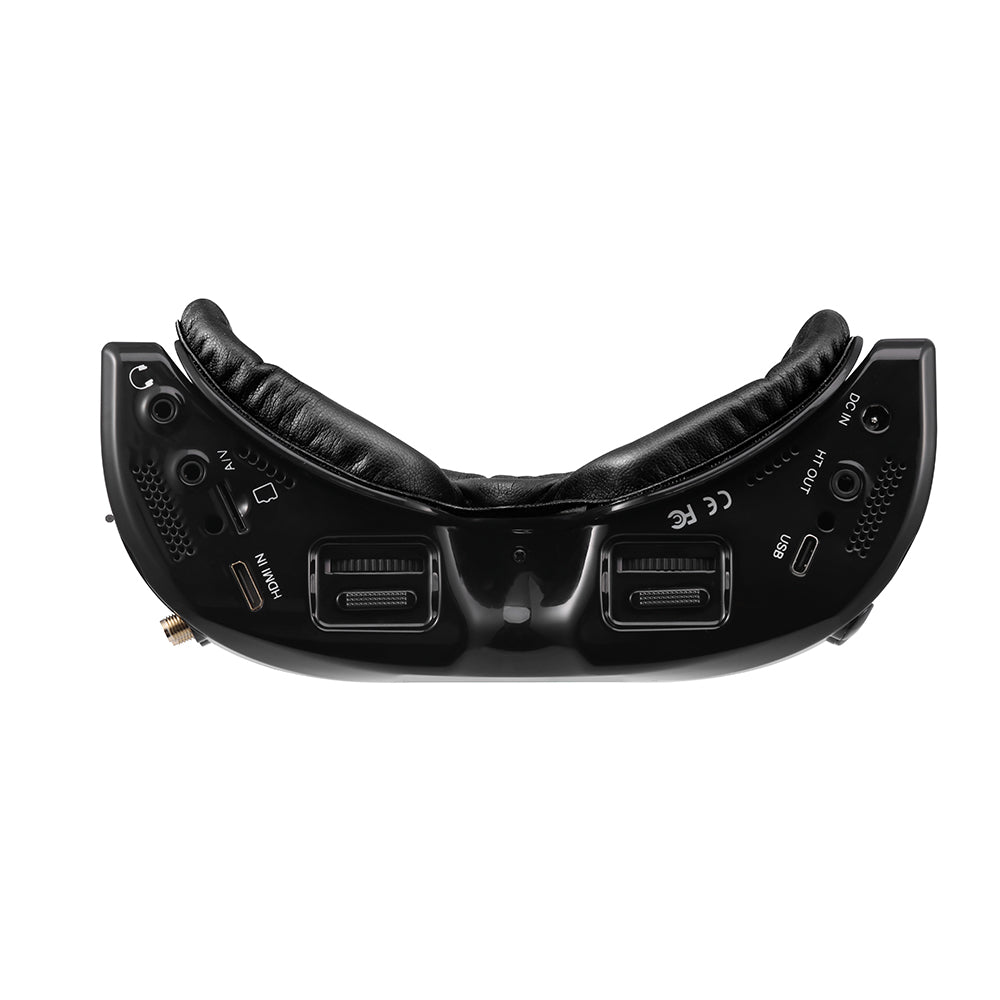

Interpupillary distance(IPD): 58-71mm
Receiver: 5.8Ghz 48CH V3.3 Steadyview Receiver
Language: 10 Language
Power Supply: DC6.5-25.2V/USB5V
Power Consumption: 720mAat12V
DVR: H264, 60fps, MOV6Mbps, SD Card support up to128Gb
Head Tracker: 3-axis Accelerometer, 3-axis gyroscope
Dimensions: 185*75*67mm
Weight: 267g

SKY04X PRO Specifications:

Screen: OLED
Resolution: 1920*1080
FOV (Diagonal): 52°
Aspect Ratio: 4:3/16:9
Focus: -6~+2 adjustable
Interpupillary distance(IPD): 58-71mm
Receiver: 5.8Ghz 48CH V3.3 Steadyview Receiver
DVR: H264, 60fps
Voltage Input: 2~6SLiPo
HDMI IN: 720P 100FPS
Head Tracker: 3-axis Accelerometer, 3-axis gyroscope
Dimensions: 185*75*67mm
Weight: 267g

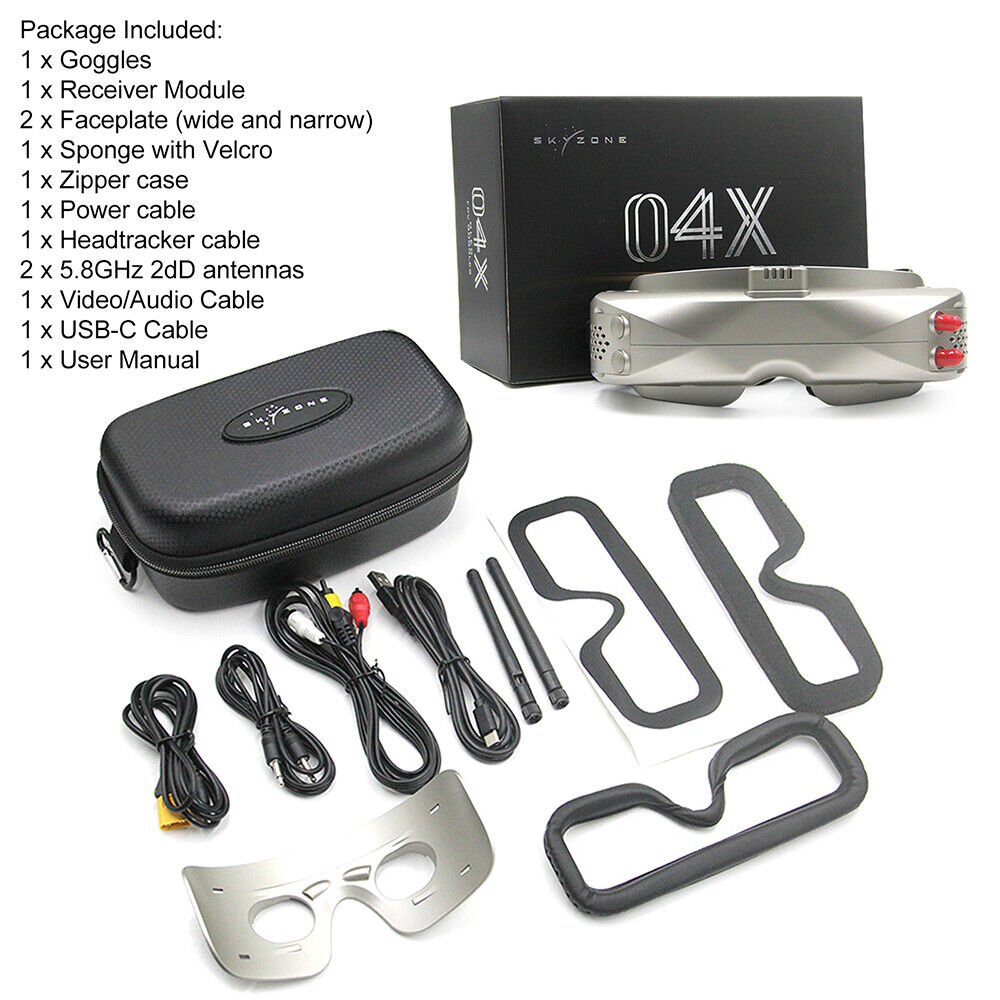

Package Included:

1x SKY04X V2/pro Goggles
1x Steadyview V3.3 Receiver Module
2x Faceplate (wide and narrow)
1x Sponge with Velcro
1x Zipper case
1x Power cable
1x Headtracker cable
2x 5.8GHz 2dB antennas
1x Video/Audio Cable
1x USB-C Cable
1x SKY04x User Manual

SKY04X USER MANUAL(Click to download)

Shipping policy

SKYZONE Guarantee
Worldwide shipping. One-year warranty. If you have any technical support or need something repaired, just contact us and we will be here with you for free!

Payment method
PayPal and Credit Cards are available online, but we also accept bank transfers directly if you cannot place an online order. Please chat with us if you have payment issue.

Order Status
Once your order ships, you will receive a shipping notification email. This email will contain your tracking number and a link to check the status of your order. You can also check the status of your order by going to your account page.

Order address
Dear customer, we will send you an order confirmation email after you place an order. Please check your address information again. We will ship according to the address on your order. If the delivery fails due to an incorrect address problem, we will not be responsible. Therefore, please make sure that your order address is correct.

Warehouse located
We have CN, USA and EU warehouse. When you enter the delivery address, please make sure there are no spelling mistakes in the address, and it is best to write your apartment number.

Shipping Charges
The shipping cost depends on the destination, weight, and size of the package. You will be able to see the exact cost during the checkout process.

Free shipping on orders over $9.99. If your order value is under it, you might be charged $10 for standard shipping(arrives in 7-15 days), or other shipping methods.

For Fix Wing RC FPV fixed wings product, we provide different shipping fee for Expedited shipping(arrives in 10-20 days). The specific shipping cost is subject to the checkout page.

For all orders' package, we handle packages by DHL, UPS, EMS, our special shipping line, DDP, Yanwen and so on, usually takes about 5-20 days for delivery.

Tax
Please feel free to place an order. We will bear the customs duties for most countries. If there are any customs duties, we will notify you by email before shipping.

Processing Time
Once you place your order, it usually takes 1 business days for us to process and prepare your package for shipment. We only process orders on business days (Monday-Friday)

Estimated Delivery Time
Shipping usually takes 7 - 20 business days. Please note that these are estimates and actual delivery times may vary.

Tracking Information
You will receive a tracking number once your package is dispatched, allowing you to monitor the progress of your shipment.

Damaged or Lost Packages
In the rare event that your package is damaged or lost during transit, please contact our customer service team immediately and we will do our best to resolve the issue.

*Total Delivery Time=Processing Time+ Shipping Time

Once we receive your online order we will send you a confirmation e-mail and you will receive a tracking number once the order has been shipped and is on it’s way to you.

We strive to provide you with a smooth and reliable shipping experience. If you have any questions or concerns, please don't hesitate to contact us.

Please Note:
Orders placed on Friday Afternoons, during weekends or National Holidays will be processed the next business day.

During holiday periods, such as Thanksgiving, Black Friday and Cyber Monday, Christmas, and Easter, orders may be subject to delay.

Please allow a few additional business days for your order to be processed and dispatched.

There are estimated delivery time only, so can not guarantee an exact delivery time.

Thanks for understanding and have excellent shopping with SKYZONE!

Contact us

If you have a technical question please just submit a ticket first then there will be a soultion for you.

Submit A Ticket(click to submit)

If you have a order inventory and shipping status question please mail us directly and we will get back to you as soon as possible.

Our company Details:
THE SKYZONE TECHNOLOGY CO.,LIMITED
Room 1001 block 1, FuCheng Digital industrial park,tangguang road, Fucheng residential district, Longhua, shenzhen, Guangdong Province, China

Email: miaya@skyzonehobbies.com

FOV woes

The FOV is slightly too large on the 04X Pro and the optics aren't quite matched which causes the corners to be out of focus and obscured. Also, since the screens are so large the margin for error of getting the goggles on your head lined up perfectly is small. What I mean is that if the goggles are slightly too high the bottom of the screens are cut off and vice versa. You can't just move your eyes to see the cut off part. This prompted me to change my OSD around so that I could actually see all the elements in focus. I had to move everything out of the corners and also they could not be in the extreme top or bottom of the canvas otherwise I might not see the info while flying and since I can't exactly hit a pause button it could lead to critical info being missed.

Other than that issue everything else about the goggles is fantastic! The receiver is orders of magnitude better than my old monitor, the screens are very high resolution and the refresh rate is awesome. I feel way more connected to my drone now. The DVR quality is very nice, which helps me make better tiny whoop videos!

100% kokybė

Viskas idealu, puiki kokybė, pilna komplektacija, šaunus produktas.

So GOOD

I agonized about the price of these, using a much less expensive goggle for the last yr. Then one day I tried a friend’s pair and was blown away by the difference. I hadn’t even realized how little I could see with my inexpensive goggles. And here’s the thing, I whoop around the house or yard every day. No joke at least 20 min a day and yes, I also love digital and have all that stuff but it’s the analog that I fly every single day. Too windy out? Rainy? Analog in the house! I’m in these goggles every day so the price is worth it. Brings a ton of joy to my life. All thumbs up! I also like that I can add other systems too. It’s a great goggle. Last thing —> more comfortable than my dji goggles or my walksnail box goggles by far! And those goggles aren’t uncomfortable but these are actually comfy.

High quality

A very high - quality video picture at these glasses

best analog goggles

One of the best analog goggles on the market. Headstrap is too tight for me, and I had to cover those light leaks in faceplate with tape.

1 2 3

Free Shipping
Worldwide shipping
12 Months Warranty
30-Day Money Back

SKY04X review by Joshua Bardwell

FREE SHIPPING on all orders over $99

EASY RETURNS 30-day postage paid returns

$5 OFF your first order | Use code: SKF

Create account to get $10 off

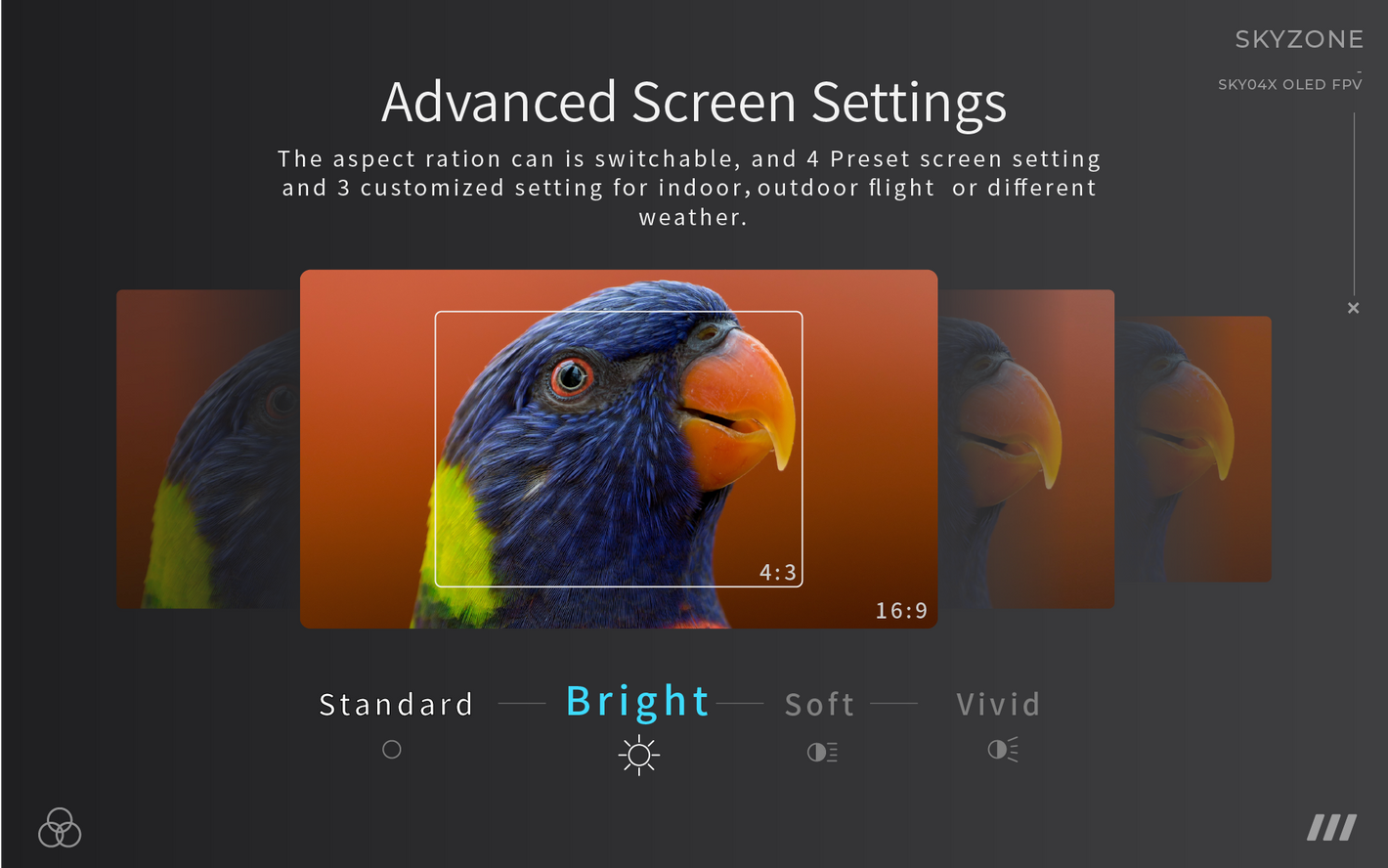

Advanced Screen Settings

The aspect ration can is switchable, and 4 Preset screen settingand 3 customized setting for indoor,outdoor flight or differentweather
OLED Screen

The 1280*960 0LED screen have high resolution and vivid color, highcontrast ration,pilots can see more details.

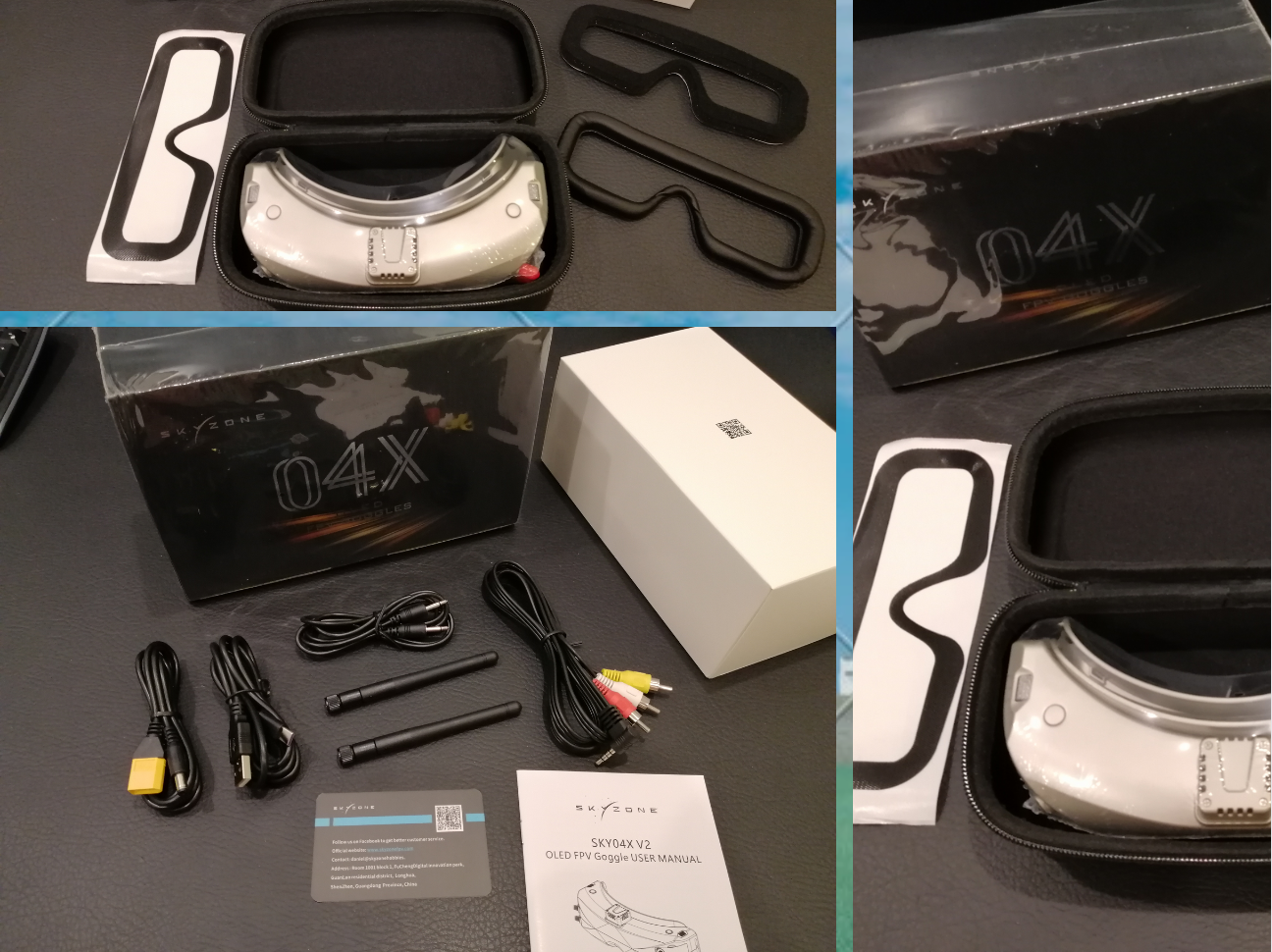

What's in The SKY04X Package
