RP1 V2 ExpressLRS 2.4ghz Nano Receiver

Regular price
$18.99
Regular price
Sale price
$18.99
Shipping calculated at checkout.
    Region:

    Tax included. Worldwide shipping.

    The RadioMaster RP series receivers are built-in a TCXO (temperature-compensated crystal oscillator) now, which ensures reliable, stable, and accurate signal reception, allowing for superior performance in demanding environments and enhancing the flight experience.

    The RP1 and RP2 2.4GHz ELRS nano series receivers are open-source receivers based on ExpressLRS. The Nano receivers, first developed by Jye Smith from the ExpressLRS development team, feature ESP8285 MCU and SX1280 RF chip. The RP1 has a UFL antenna socket for full-range antenna use. The RP2 has a built-in ceramic antenna which is super light and small in size and ideal for racing.

    The RP1 and RP2 feature WIFI built in so you can upgrade firmware by WIFI and configure the Receiver via the built-in WebUI with your PC or mobile phone.

    Due to the low-latency and high-refresh-rate RF module, the RP1 and RP2 are ideal for FPV races or Long Range. Suitable for many models due to the ultra-light and Nano size, these receivers can fit just about anywhere!


    Features:

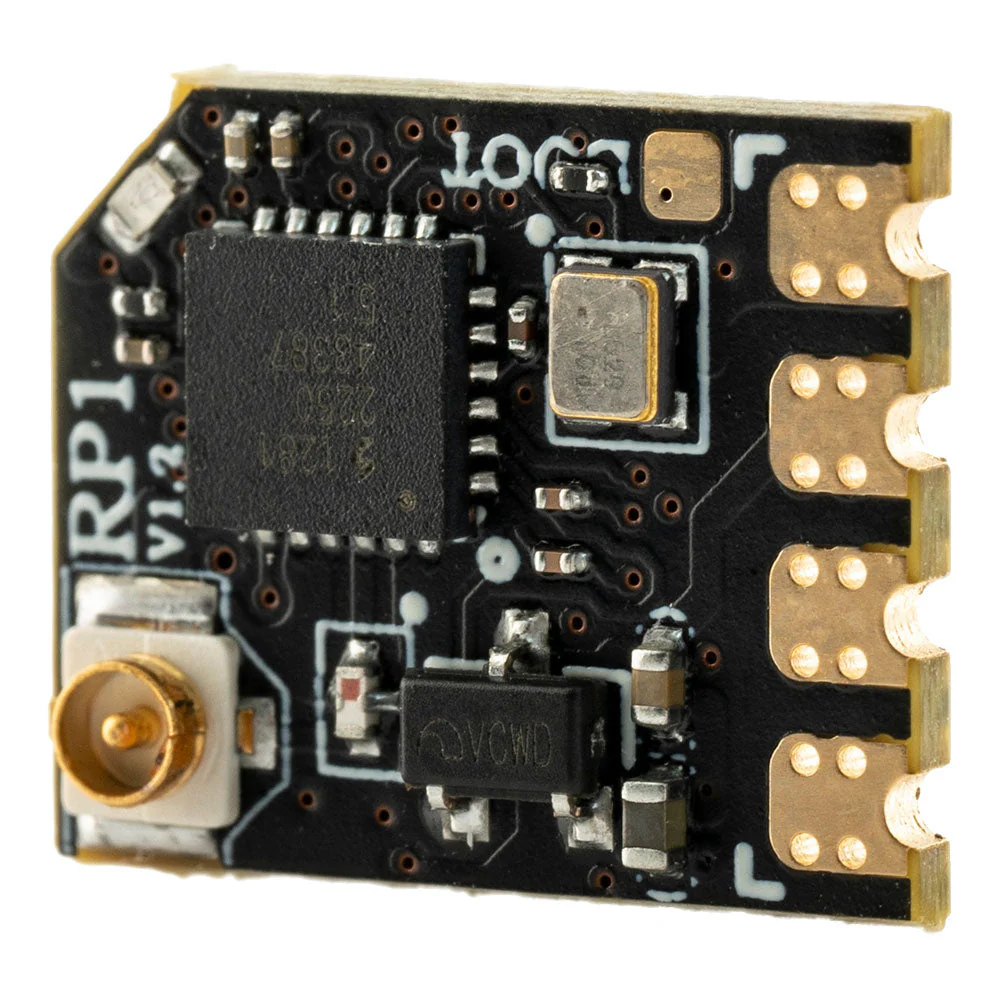

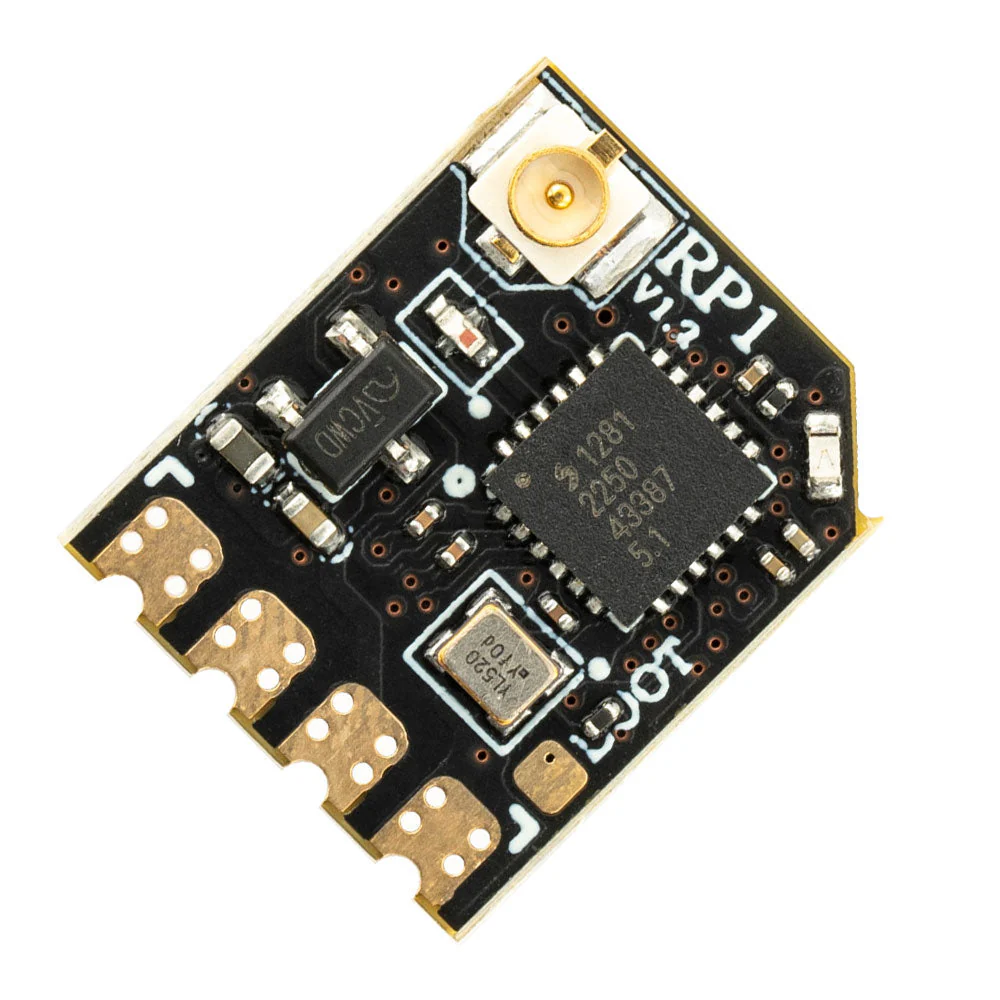

    Improved PCB design is better for heat dissipation.
    Upgraded rigid antenna with greater durability and performance.
    LED on the top side of PCB.
    Solder pads are improved and easier to solder to.
    Built-in a TCXO (temperature compensated crystal oscillator)
    Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRS

    Specification:
    Item: RP1 Nano ExpressLRS 2.4ghz Receiver
    Type: ISM
    MCU: EPS8285
    RF Chip: SEMTECH SX1281
    Telemetry RF power: 10mW

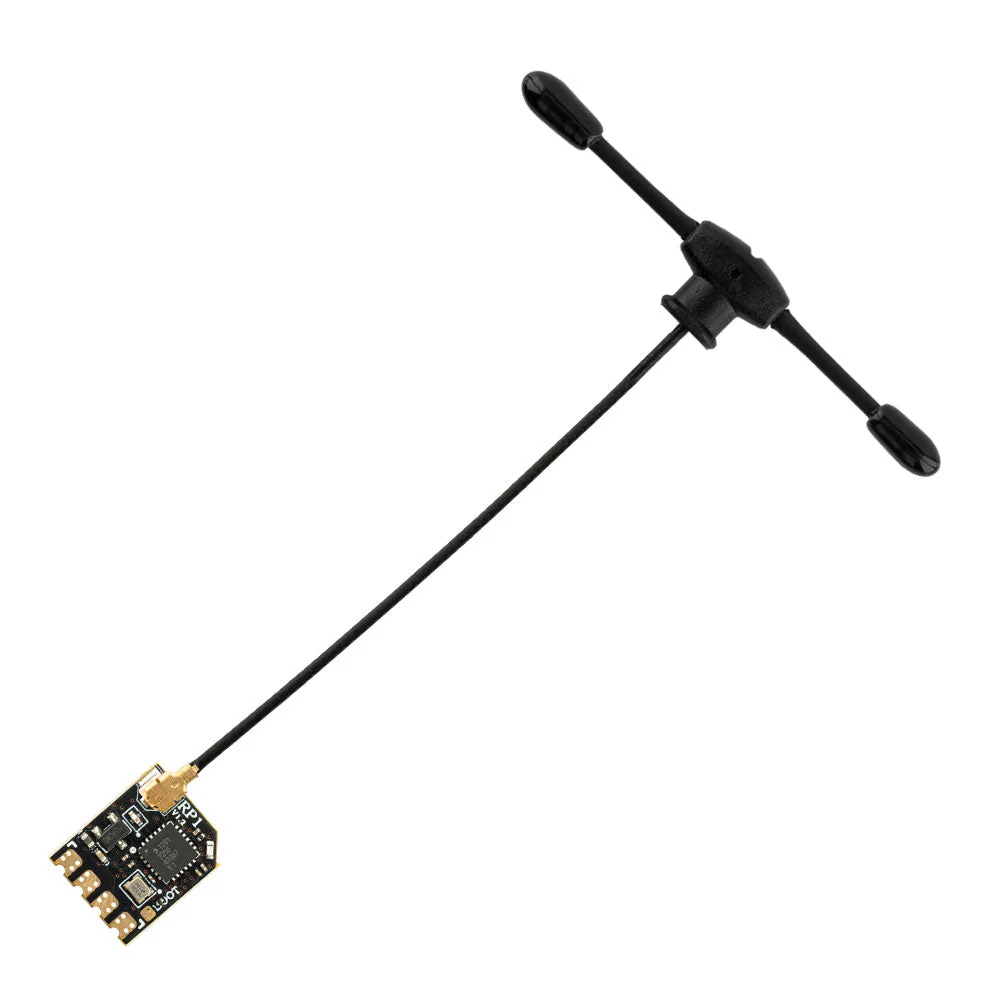

    Antenna: 65mm 2.4ghz T Antenna
    Frequency Range: 2.404 - 2.479 Ghz
    Maximum receive refresh rate: 500Hz / F1000Hz
    Minimum receiver refresh rate: 25Hz
    Working voltage: 5v
    Weight: 2.2g (Including antenna)

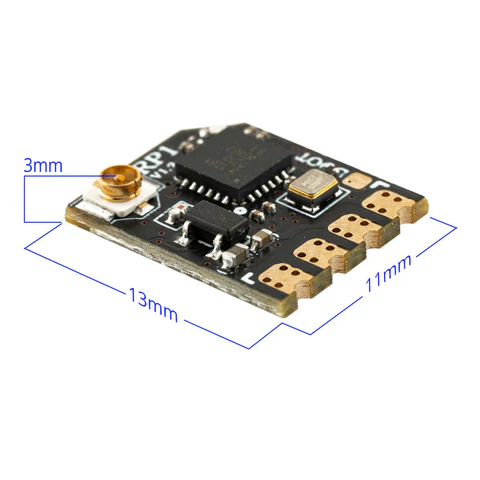

    Dimension: 13mm*11mm*3mm
    Firmware Version: ExpressLRS v2.4 pre-installed
    FW Target: RadioMaster RP1/2 2400 RX
    Bus interface: CRSF

    TCXO (temperature compensated crystal oscillator)
    The TCXO ensures high stability and accuracy in frequency control, compensating for temperature variations. This results in consistent and reliable signal reception, even in extreme temperature conditions. It also reduces frequency drift over time, providing long-term frequency stability and preventing signal degradation.

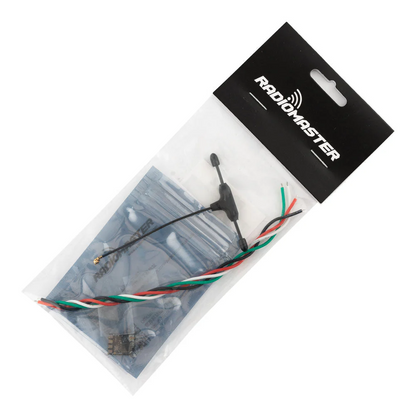

    Package Includes:

        1 * RP1 ExpressLRS 2.4ghz Nano Receiver
        1 * 65mm UFL 2.4Ghz T Antenna
        1 * User Manual
        1 * CRSF wire
